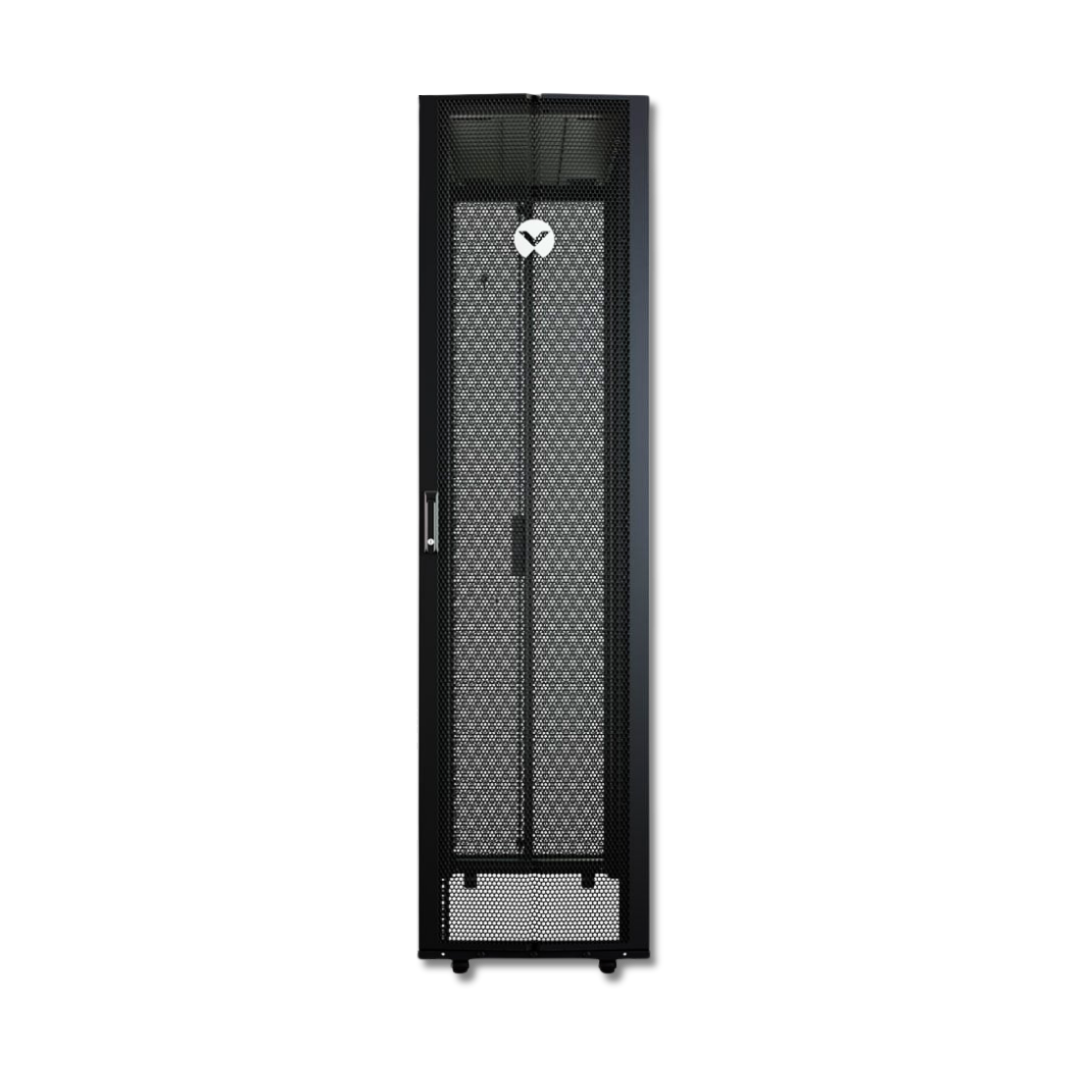

Vertiv VR Rack
Server Rack
Flexible, secure and ready for rapid deployment of high-density IT equipment.
42U / 48U Heights • 600 / 800 mm Widths • 1100 / 1200 mm Depths
EIA-310E, UL2416, RoHS and REACH Compliant
Designed for Space-Efficient, High-Density IT Deployments

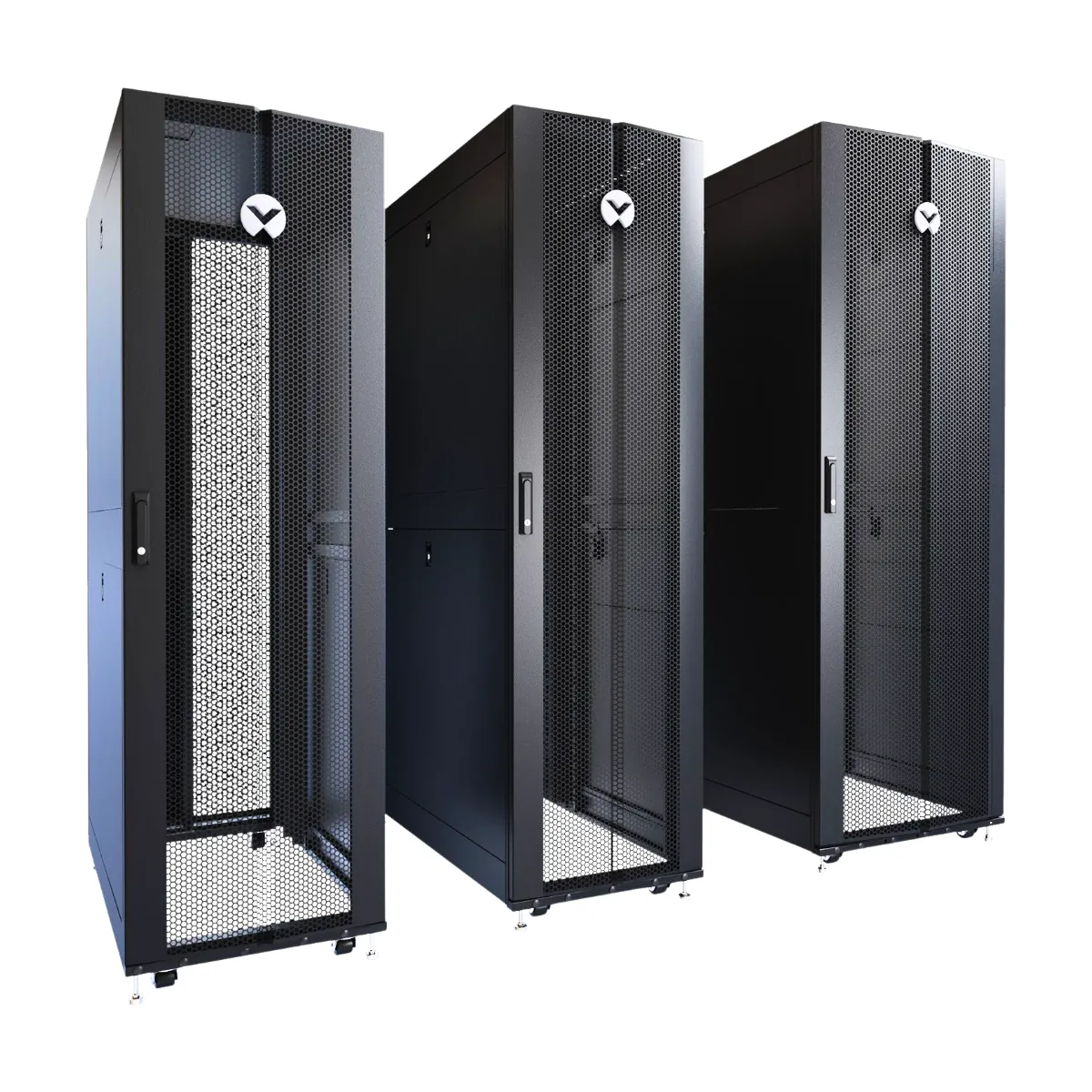

Vertiv VR Rack is a rack enclosure designed to securely organize servers, storage systems, network equipment, rack PDUs and UPS systems.
Full-depth adjustable 19-inch mounting rails, 77% perforated doors and advanced cable-management features support organized deployment in high-density IT environments.
Key Features of Vertiv VR Rack
High-Density Ready
A flexible enclosure supporting servers, storage systems, network equipment, rack PDUs, UPS systems and KVM equipment.
77% Perforated Doors
Perforated front and rear doors support high airflow and efficient thermal management in high-density rack environments.
Full-Depth Adjustable Rails
The 19-inch EIA mounting rails can be adjusted throughout the usable depth to accommodate different equipment sizes.
Tool-Less PDU Management
Zero-U PDU and cable-management brackets provide organized routing without consuming rack space.
Easy Service Access
A tool-less removable top panel, reversible doors and removable side panels simplify on-site installation and maintenance.
Standards-Compliant Design
Compliance with EIA-310E, UL2416, RoHS and REACH provides a standardized framework for enterprise IT environments.
Ideal Applications
High-Density Data Centers and IT Rooms
Vertiv VR Rack is suitable for standardized equipment deployment across data centers, network rooms, enterprise IT rooms and mission-critical environments. It provides a flexible rack platform for projects requiring multi-device integration, structured cable management, planned airflow and convenient maintenance access.
Recommended Applications
Integration and System Compatibility
Vertiv VR Rack supports an integrated approach to rack PDU placement, cable routing, airflow management and equipment access. When configured with compatible accessories and components, it helps create a more organized, scalable and service-friendly IT environment.
Technical Specifications
Static Load Capacity
1,360 kg / 3,000 lb
Dynamic Load Capacity
1,022 kg / 2,250 lb
Transport Load Capacity
Select shock-packaged models support 907 kg / 2,000 lb
Door Configuration
Lockable single front door and split rear doors with 77% perforation
Mounting Rails
Two pairs of full-height, fully depth-adjustable 19-inch EIA rails
Top Panel
Tool-less removable panel with four cable-entry openings and capacity for more than 2,000 Cat6 cables
PDU and Cable Management
Two full-height, depth-adjustable Zero-U brackets
Color and Finish
RAL 7021 black powder-coated finish
Standards
EIA-310E, UL2416, RoHS and REACH
Service Access
Tool-less top panel, reversible doors and individually lockable side panels
Model Options
Vertiv VR Rack is available in 42U and 48U heights, 600 mm or 800 mm widths, and 1100 mm or 1200 mm depths. Contact our technical team to determine the appropriate configuration for your project.
|
Model
|
Height
|
Width
|
Depth |
|---|---|---|---|
|
VR3100 |
42U |
600 mm |
1100 mm |
|
VR3300 |
42U |
600 mm |
1200 mm |
|
VR3150 |
42U |
800 mm |
1100 mm |
|
VR3350 |
42U |
800 mm |
1200 mm |
|
VR3107 |
48U |
600 mm |
1100 mm |
|
VR3307 |
48U |
600 mm |
1200 mm |
|
VR3157 |
48U |
800 mm |
1100 mm |
|
VR3357 |
48U |
800 mm |
1200 mm |
