Vertiv Knürr DCM
Server Rack
Up to 1,500 kg Static Load Capacity | Simplified Logistics and Rapid Deployment
A high-performance server rack featuring a lightweight aluminum frame and flexible, standards-based architecture.
83% Perforated Doors | Modular T-Slot Frame | Full 19-Inch Equipment Compatibility
Reliable, High-Capacity Rack Infrastructure in a Compact Footprint

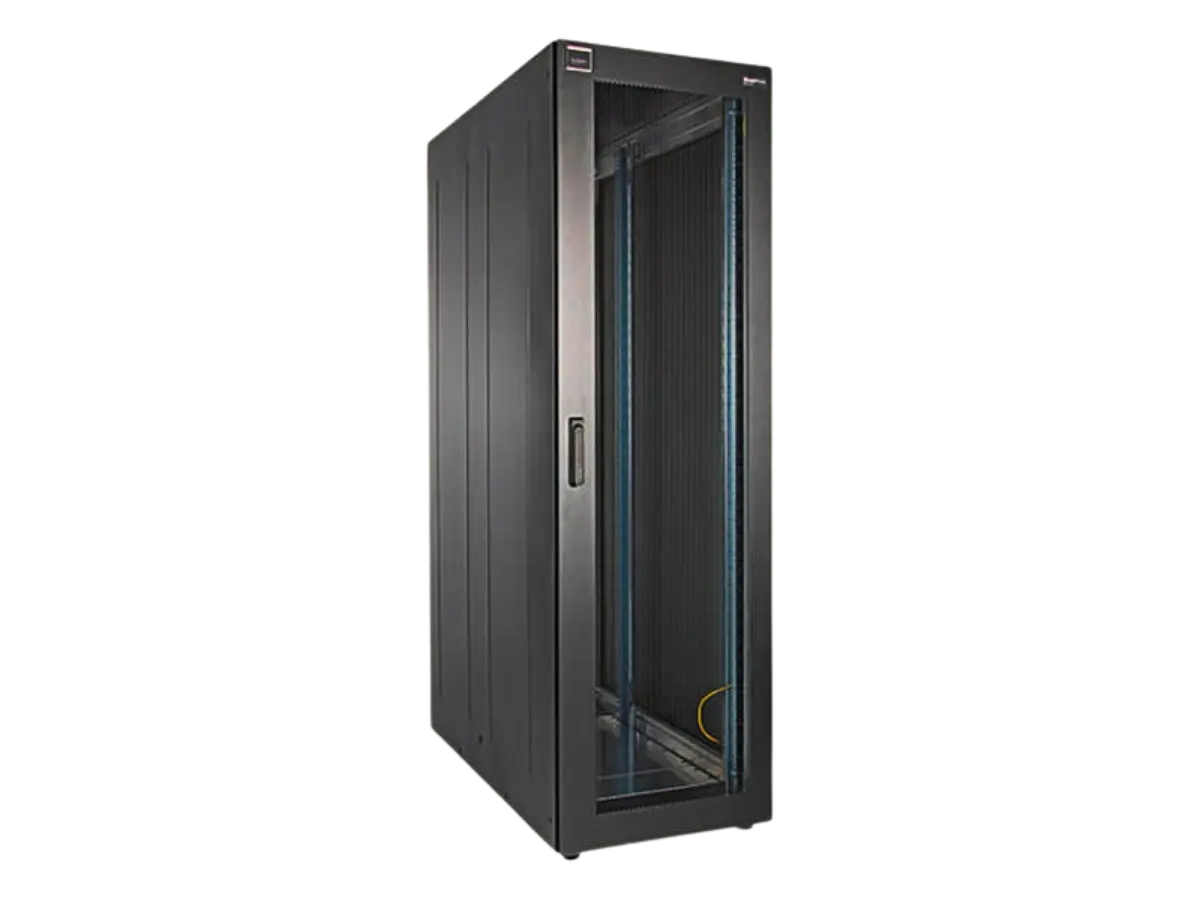

Vertiv Knürr DCM is a modular, high-load-capacity server rack designed for high-density data center environments.

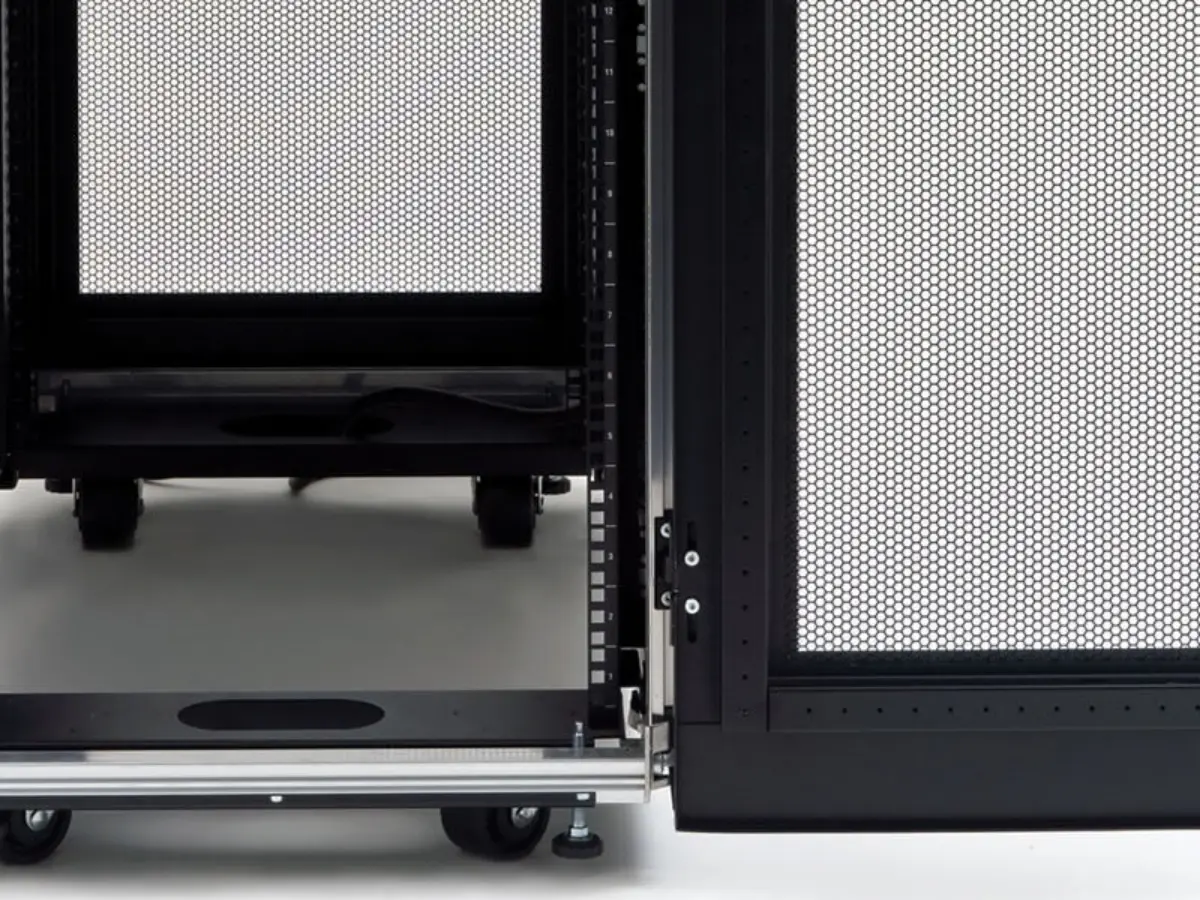

Its extruded aluminum frame supports static loads of up to 1,500 kg while combining low structural weight with high stability. Front and rear doors with 83% perforation support efficient airflow through the rack.
The modular architecture also simplifies future expansion, equipment integration and operational management.
Key Features of Vertiv Knürr DCM
High Load Capacity
A durable aluminum frame supporting static loads of up to 1,500 kg.
Optimized Airflow
Front and rear doors with 83% perforation support effective airflow and thermal management.
Modular Design
T-slot extrusions and continuously adjustable mounting depth support a wide range of IT equipment.
Standards Compliance
Available with seismic-tested configurations and IP20-rated protection.
Ideal Applications
Designed for High-Density Data Centers
Vertiv Knürr DCM is optimized for modern data centers, colocation facilities, financial data processing environments and enterprise operations with high-density IT systems.
Its load capacity of up to 1,500 kg, lightweight aluminum construction and 83% perforated doors make it suitable for heavy server deployments and demanding airflow requirements.
The modular architecture and tool-less installation options also support rapid deployment and lower total cost of ownership.
Recommended Applications
Integration and Intelligent Infrastructure Management
Vertiv Knürr DCM is designed to integrate with data center monitoring systems and intelligent power management solutions.
Technical Specifications
Static Load Capacity
15,000 N / 1,500 kg
Frame Material
Extruded aluminum frame
Door Perforation
83% front and rear door perforation
Mobile Load Capacity
10.000 N
Mounting Standard
19-inch, IEC 297-3 compliant
Protection Rating
IP20, compliant with EN 60529
Seismic Resistance
Optional seismic kit for earthquake-prone regions
Color Options
RAL 7021 Dark Gray / RAL 7035 Light Gray
Cable Management
Large top and bottom cable entry points with tool-less vertical channels
Continuously Adjustable Depth
Continuously adjustable 19-inch mounting extrusions
Related Solutions
Prepare Your Data Center for the Future with the Right Engineering
Plan the most suitable Knürr DCM configuration for your project with our technical team.
