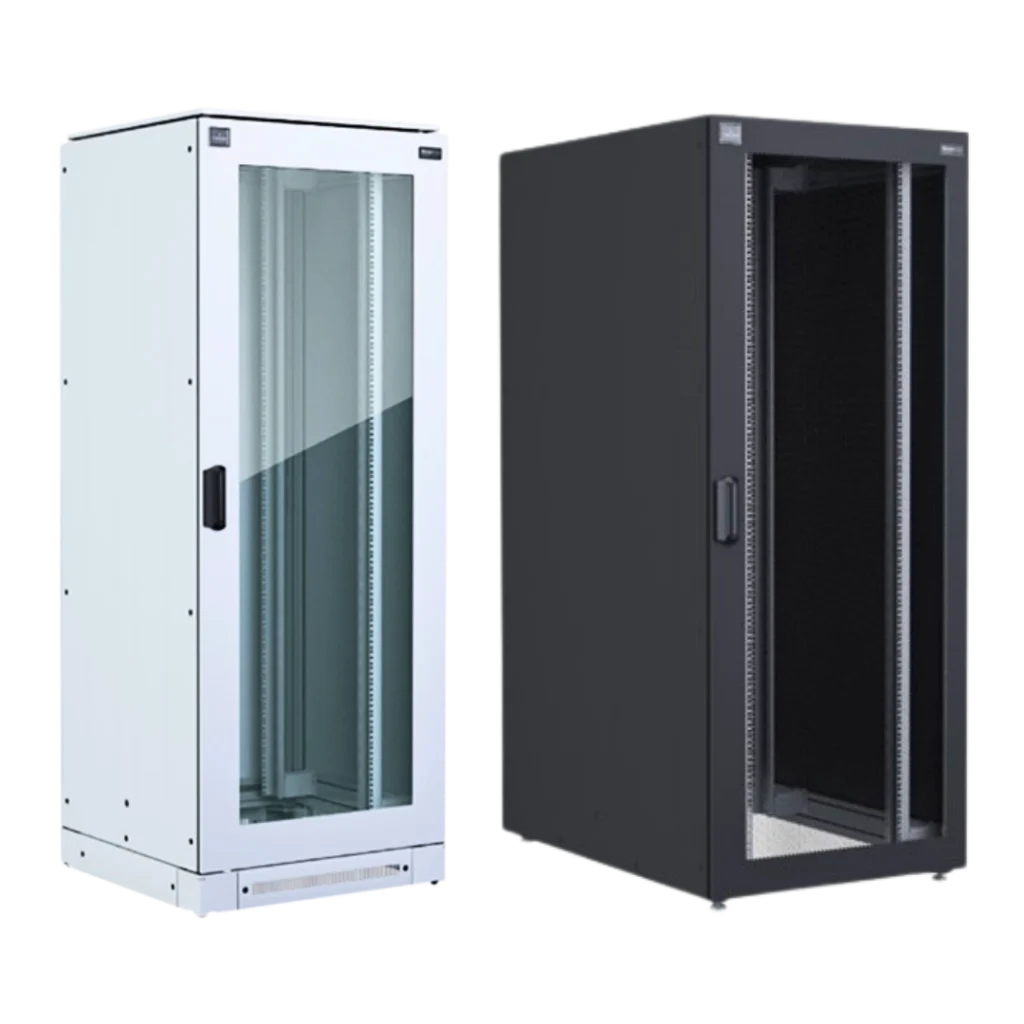

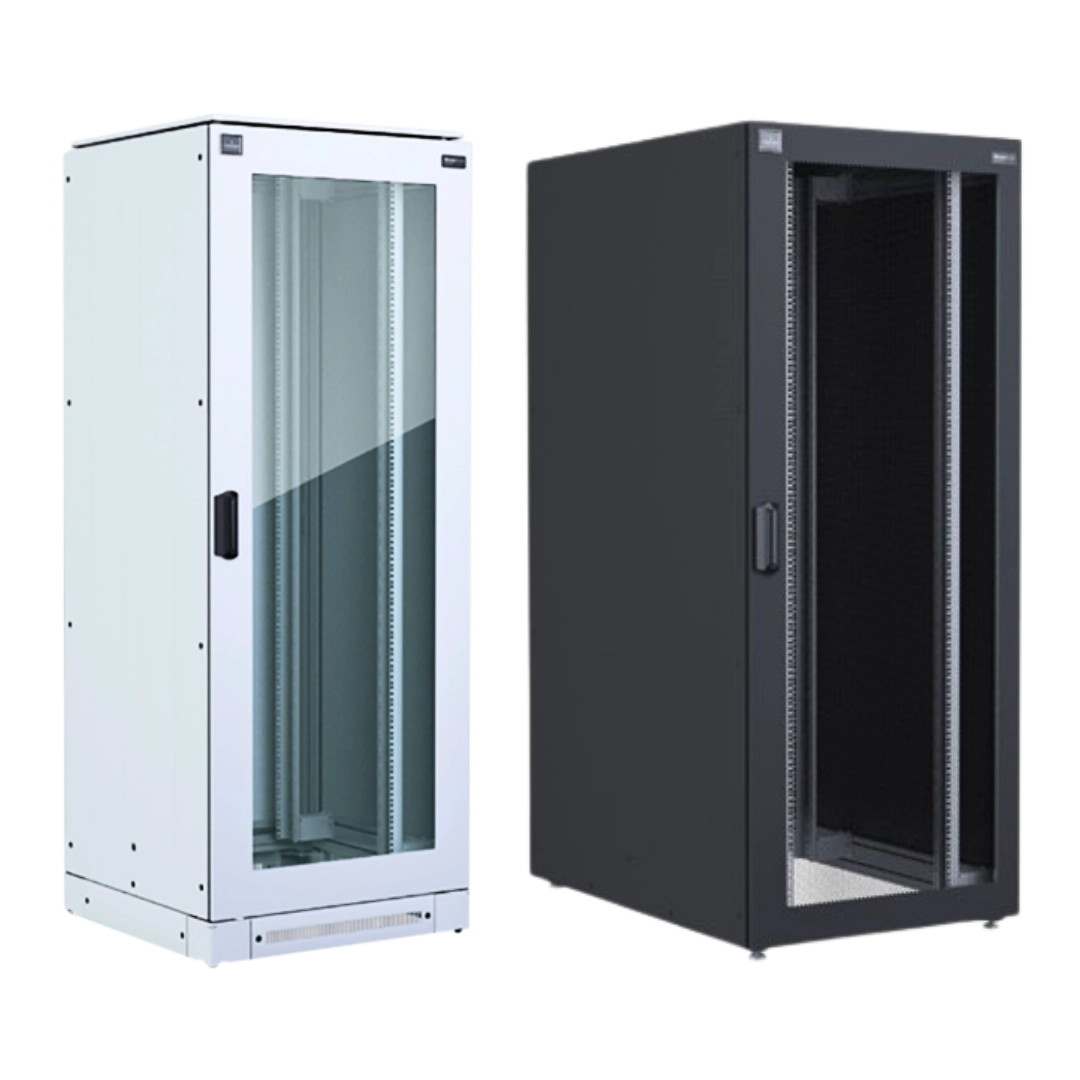

Vertiv Knürr MIR2
Server and Network Rack
A modular rack platform for server and network infrastructure.
One Platform for Server and Network Infrastructure
Vertiv Knürr MIR2 is the next generation of the Miracel rack platform, developed through Vertiv’s extensive rack design experience. It brings server and network applications together within a single system, enabling different types of IT equipment to be organized within a common rack platform.
Its modular architecture allows rack components and accessories to be configured for specific project requirements. The lightweight aluminum frame reduces overall rack weight, minimizes raised-floor loading and simplifies transportation and installation.

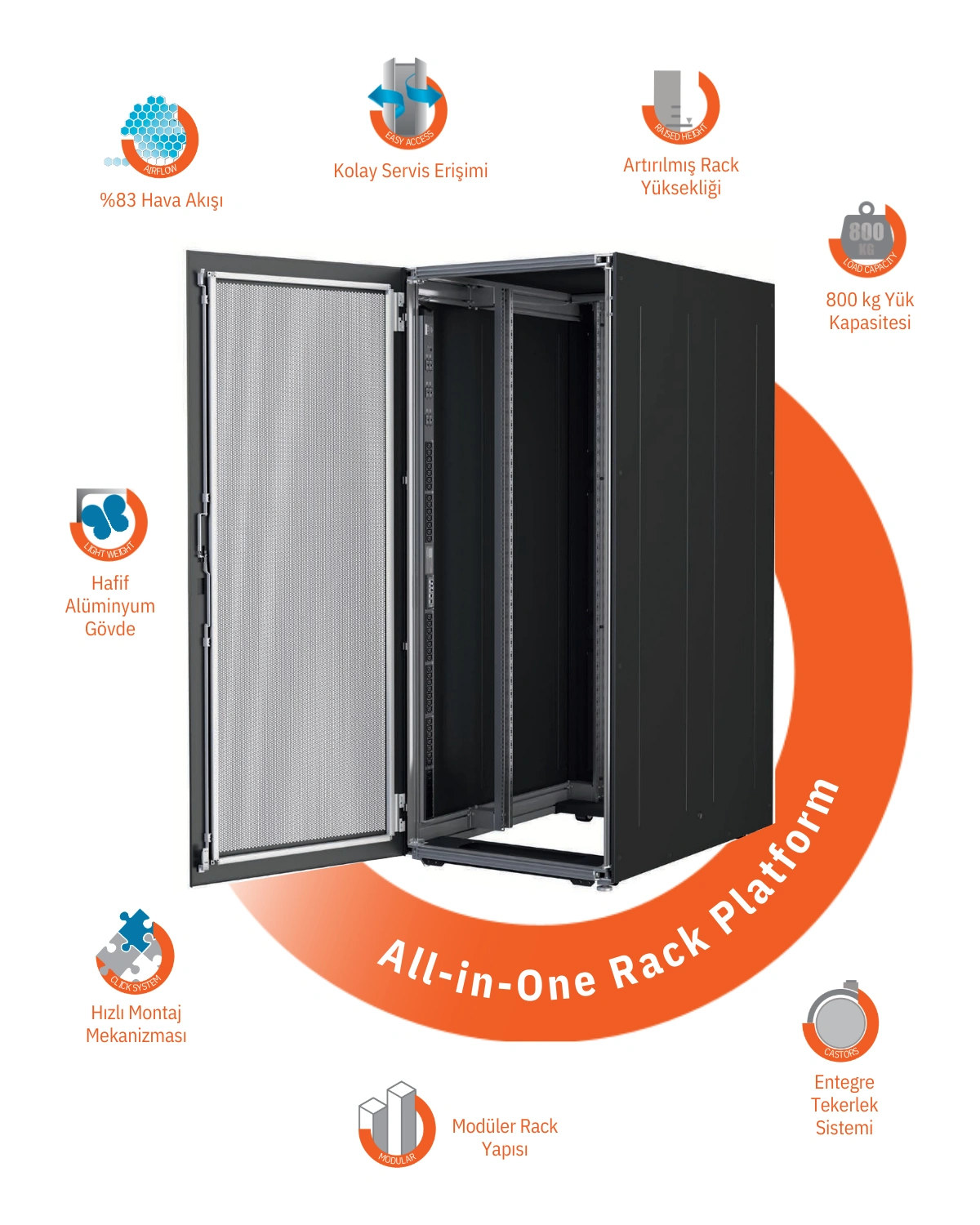

Key Features of Vertiv Knürr MIR2
All-in-One Rack Platform
Combines server and network applications in one rack platform.
High Airflow
Perforated door options with 83% open area support optimized airflow through the rack.
Modular Rack System
Rack components and accessories adapt to changing requirements.
T-Slot Mounting System
Integrated T-slots in the aluminum frame support fast and flexible accessory installation.
Lightweight Aluminum Frame
The aluminum frame reduces rack weight and minimizes floor loading.

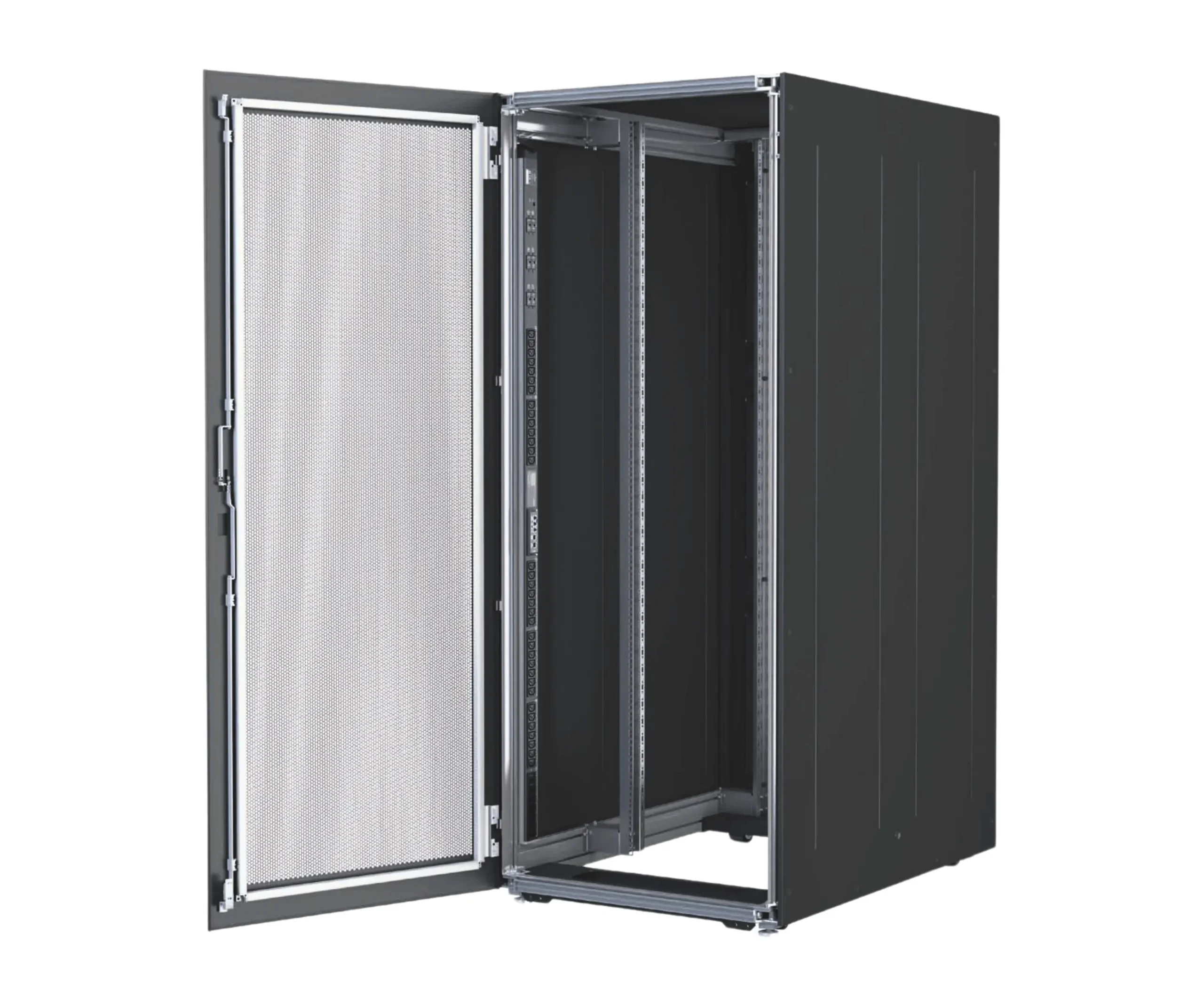

Easy Service Access
Access from all sides simplifies equipment installation, maintenance and servicing.
Vertiv Knürr MIR2 Platform Advantages
Vertiv Knürr MIR2 provides a modular rack architecture that combines server and network systems within a single platform. Its lightweight aluminum frame, high-airflow door options and broad accessory ecosystem allow it to adapt to different data center configurations.

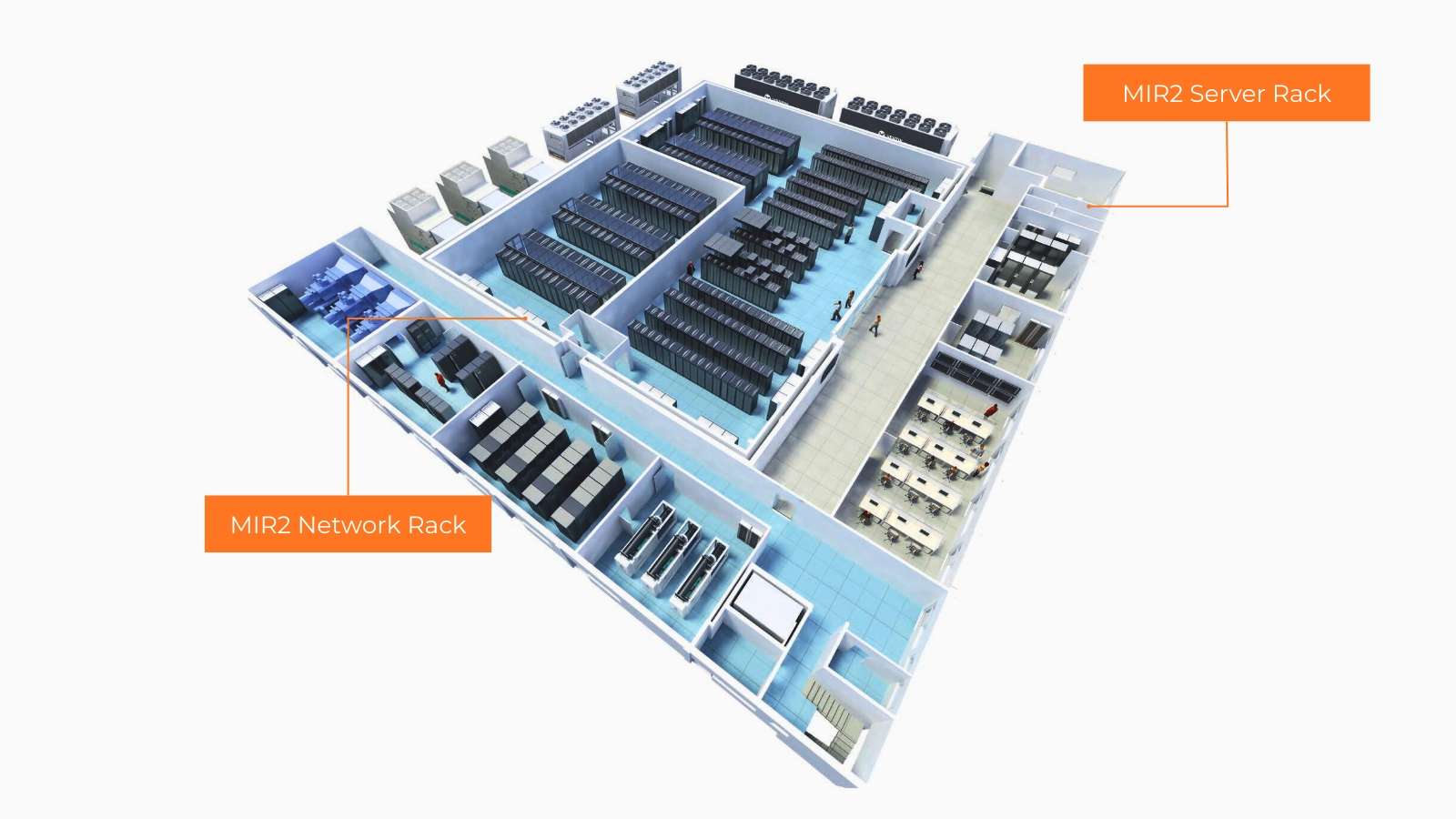

MIR2 Platform Applications
Vertiv Knürr MIR2 extends beyond conventional server and network rack applications. Its modular architecture can also accommodate cabling, power distribution and different IT deployment scenarios. This enables a standardized rack platform to be used across a range of project requirements.
Server Infrastructure
Organized installation of servers and storage equipment.
Network Applications
Deployments focused on switches, patching and cable management.
Modular Data Centers
A standardized platform compatible with different rack configurations.
Ideal Applications
Data Center and Network Infrastructure
The Vertiv Knürr MIR2 rack platform supports secure and organized deployment of server and network equipment across different IT environments. Its modular architecture makes it suitable for data centers, telecommunications systems and enterprise IT facilities.
Recommended Applications
Integration and System Compatibility
Vertiv Knürr MIR2 is designed to integrate with rack PDUs, cable-management accessories and broader data center systems. Its modular architecture simplifies equipment integration and supports organized infrastructure management.
Technical Specifications
Static Load Capacity
800 kg
Rack Standard
19-inch mounting dimensions compliant with IEC 60297-1 and IEC 60297-2
Rack Height
42U and 47U
Installation Options
Stationary installation or mobile use with casters
Airflow
Perforated door options with 83% open area
Materials
Extruded aluminum frame, galvanized steel panels and steel doors
Protection Rating
IP20, tested in accordance with EN 60529
Color Options
RAL 7021 dark gray or RAL 7035 light gray
Standards
Compliant with IEC 60297-1, IEC 60297-2 and IP20 requirements in accordance with EN 60529.
Service Access
Access from all sides, quick-release side panels and removable top cable-entry cover
Model Options
Vertiv Knürr MIR2 is available in 42U and 47U heights, 600 mm or 800 mm widths, and 1000 mm or 1200 mm depths. Contact our technical team to determine the appropriate configuration for your project.
|
Height
|
Width
|
Depth
|
|---|---|---|
|
42U |
600 mm |
1000 / 1200 mm |
|
47U |
600 mm |
1000 / 1200 mm |
|
42U |
800 mm |
1000 / 1200 mm |
|
47U |
800 mm |
1000 / 1200 mm |
